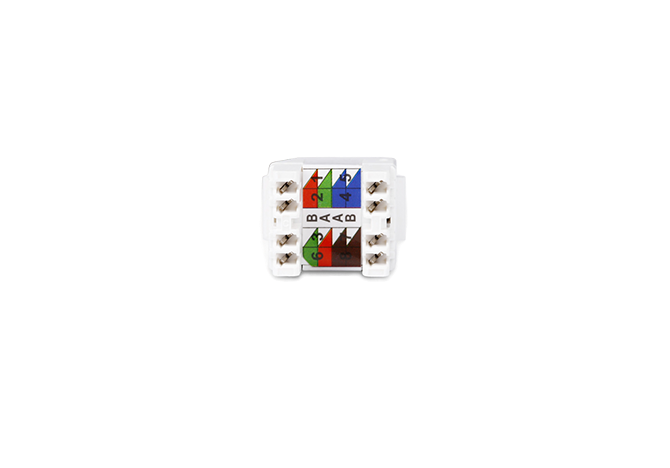

iCONEC-CFM5EFEMT
Cat .5e Shielded Information Module
Email：sales-usa@everprox.com
Phone：+1 408-320-2181
Product Advantages
- 360° total shielding structure with zinc alloy; Support solid or multi-strand cables of 22-24AWG.
- Gold-plated needles in sockets: They are made of phosphor bronze with a thickness of 0.35mm.
- The bottom plated with 80u nickel is plated again with 50u gold.
- IDC terminal: It is made of phosphor bronze with a thickness of 0.4mm, plated with 100u nickel
- Maximum contact resistance 20mΩ, IDC maximum contact resistance 2.5mΩ
- Tool-free termination method is adopted to form 8-core wires at once.
- Insertion force ≤ 30N, withdrawal force ≥ 30N
- Durability ≥750 times
- Termination ≥200 times
- Electrical Performance
- Compression strength: 1000V AC/1min Insulation resistence ≥500MΩ@100V
- Rated DC current: 1.5Amps
- DC resistance: ≤ 0.1Ω
- Storage temperature: -10 °C to 60 °C ;Operation Temperature: -10 °C to 60 °C
- Relative humidity 10%-90%RH
Product Specs
| Parameter Item | Specification Value |
|---|---|
| 耐压强度 | 1000V AC/1min，绝缘电阻≥500MΩ@100 V |
| 直流额定电流 | 1.5Amps |
| 直流电阻 | ≤0.1Ω |
| 储存温度 | -40℃ ~ 70℃ |
| 工作温度 | -10℃ ~ 60℃ |
