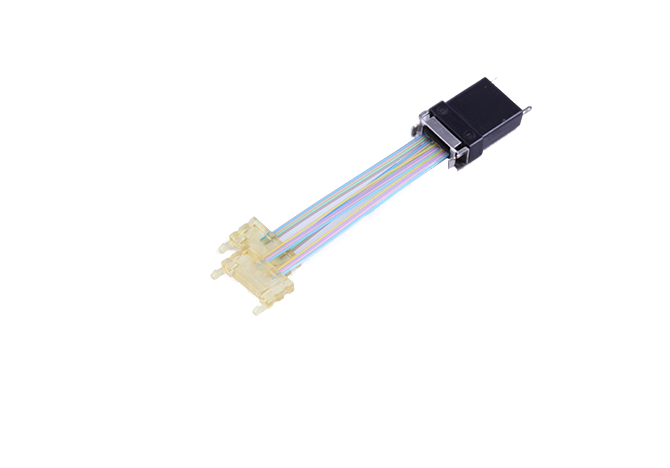

MT-MT/Jumper Ribbon Fiber
High-density MT connector with small volume, it uses grinding /laser cutting technology,and angle length can be customized. It can provide high-speed transmission channel foroptical module.
Book Online
Email：sales-usa@everprox.com
Phone：+1 408-320-2181
× close

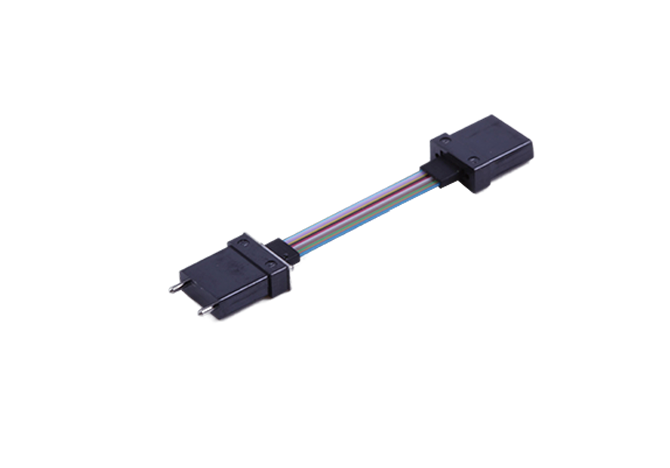

MT-MT/Jumper Ribbon Fiber

+
-
Product Advantages
  • Process design and development can be carried out according to customized product structure
  • Multi-channel parallel optical transmission
  • Internal optical fibers can be directly connected and cross-connected
  • Optical fiber cutting length: 100~400um, tolerance: ±10um
  • Optical fiber cutting angle: 0~45°, tolerance: ±1°
  • High efficiency, low cost
  • Support customized optical component design (Cutting/grinding length and cutting direction of optical fiber)
Product Specs
Parameter Item Specification Value
Optical Cable Type Ribbon fiber
Optical Fiber Type OM1 62.5/125
OM2 50/125
OM3 50/125
OM4 50/125
Technical Specification Meet IEC61754 and RoHS requirements
Ferrule Type Multimode: 4,8,12,16,24,32
Multimode Low Loss: 8,12
Insertion Loss Multimode: 0.2dB Typical, 0.60dB Maximum
Multimode Low Loss: 0.1dB Typical, 0.35dB Maximum
Return Loss Multimode: >20dB (Flat Polish)
Multimode Low Loss: >20dB (Flat Polish)
Operating Temperature -20℃~+70℃
