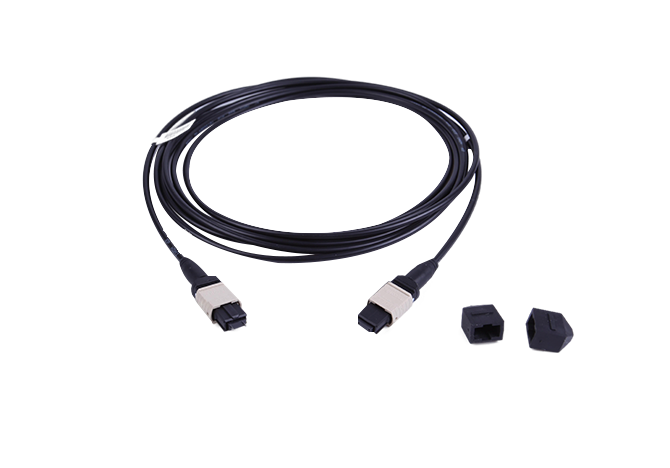

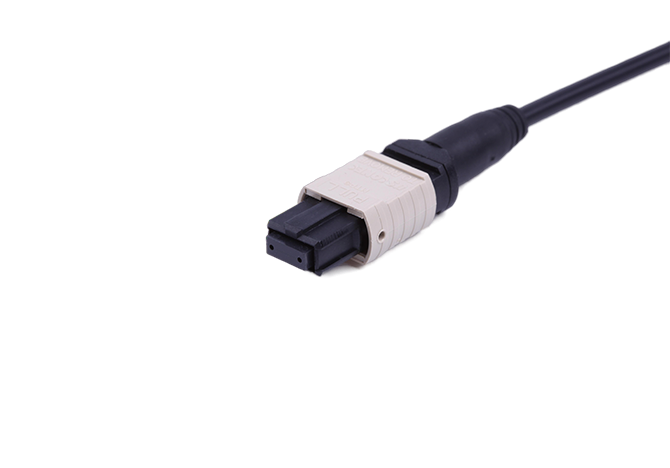

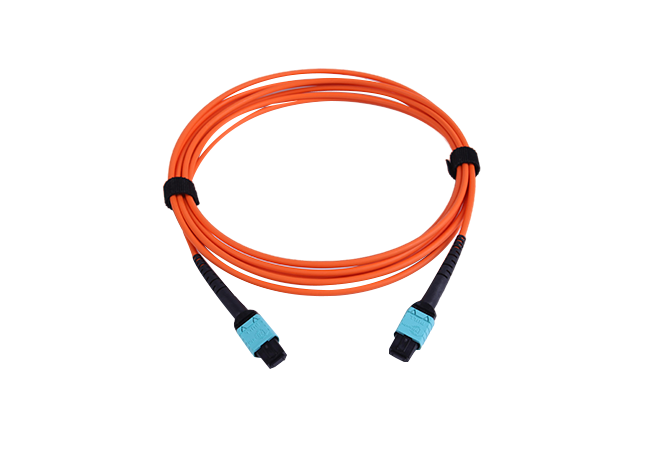

MPO/MTP Jumper
With the advent of 5G era, the bandwidth demand of data center is increasing rapidly. Inorder to solve the problem of disordered wiring, realize quick wire deployment, reduceinstallation time and cost, as well as increasethe utilization rate of data center space,MPO/MTP jumpers are widely used. MPO/MTP connector, which can realize multi-core opticalfiber connection, is used in high-density integrated optical fiber wiring environment and internaland external connection of data center devices.
Email：sales-usa@everprox.com
Phone：+1 408-320-2181
Product Advantages
- High Density
- Small Volume
- Plug and Play, Easy to Install
- Excellent Optical and Mechanical Properties
- Low Insertion Loss
- Optical Cable Materials Meet LSZH, OFNR and OFNP
- Compared with Competitors, We Have the Advantage of Independent Production of Optical Fiber and Cable
Product Specs
| Parameter Item | Specification Value |
|---|---|
| Interface | MPO/MTP LC/SC/FC |
| Optical Fiber | SM MM |
| Number of Optical Fiber Cores / Grinding | MPO/MTP： SM: 12F/APC 24F/APC 16F/APC MM: 12F/APC 24F/APC 16F/APC LC/SC/FC： SM: APC、UPC MM: PC |
| LC/SC/FC Premium | SM: APC: IL(dB): Typical: 0.1 Max.: 0.2 ; RL(dB): Min.: 65 UPC: IL(dB): Typical: 0.1 Max.: 0.15 ; RL(dB): Min.: 55 MM: PC: IL(dB): Typical: 0.1 Max.: 0.15 ; RL(dB): Min.: 45 |
| MPO/MTP Standard | MPO/MTP: SM: 12F/APC: IL(dB): Typical: 0.35 Max.: 0.7; RL(dB): Min.: 60 24F/APC: IL(dB): Typical: 0.35 Max.: 0.7; RL(dB): Min.: 60 16F/APC: IL(dB): Typical: 0.35 Max.: 0.7; RL(dB): Min.: 60 MM: 12F/APC: IL(dB): Typical: 0.2 Max.: 0.5; RL(dB): Min.: 20 24F/APC: IL(dB): Typical: 0.2 Max.: 0.5; RL(dB): Min.: 20 16F/APC: IL(dB): Typical: 0.2 Max.: 0.5; RL(dB): Min.: 20; |
| MPO/MTP Premium | MPO/MTP: SM: 12F/APC: IL(dB): Typical: 0.1 Max.: 0.35; RL(dB): Min.: 60 24F/APC: IL(dB): Typical: 0.1 Max.: 0.35; RL(dB): Min.: 60 16F/APC: IL(dB): Typical: 0.1 Max.: 0.35; RL(dB): Min.: 60 MM: 12F/APC: IL(dB): Typical: 0.1 Max.: 0.35; RL(dB): Min.: 20 24F/APC: IL(dB): Typical: 0.1 Max.: 0.35; RL(dB): Min.: 20 16F/APC: IL(dB): Typical: 0.1 Max.: 0.35; RL(dB): Min.: 20; |
| LC/SC/FC Standard | SM: APC: IL(dB): Typical: 0.15 Max.: 0.3 ; RL(dB): Min.: 60 UPC: Typical: 0.15 Max.: 0.2 ; RL(dB): Min.: 50 MM: PC: Typical: 0.15 Max.: 0.2 ; RL(dB): Min.: 30 |
