EPGUDH72E-C0C0

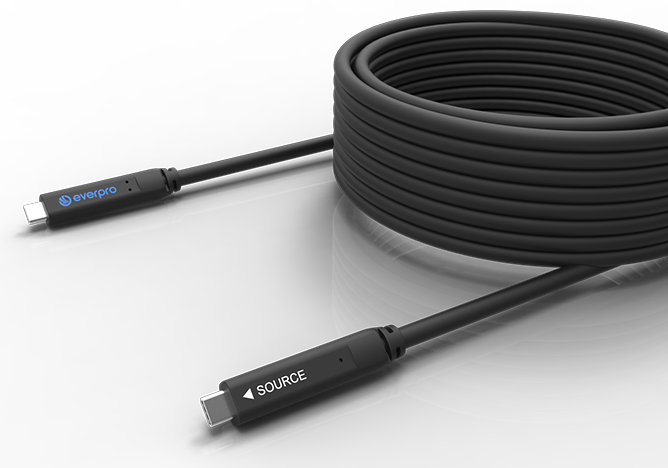

USB 3.2 Gen2 Hybrid Active Optical Cable
Email：sales-usa@everprox.com
Phone：+1 408-320-2181
Product Advantages
- USB 3.2 Gen2 Type C to Type C
- USB 3.2 Gen2 10Gbps, Support USB 2.0/1.1
- DP 1.4 32.4Gbps. 4K @ 60Hz
- Support DisplayPort 1.4 Alternate Mode
- Up to 15 meters
- Support PD3.0, 60W （20V/3A）
Product Specs
| Parameter Item | Specification Value |
|---|---|
| Cable Length | Up to 15m Catalog: 05m/10m/15m |

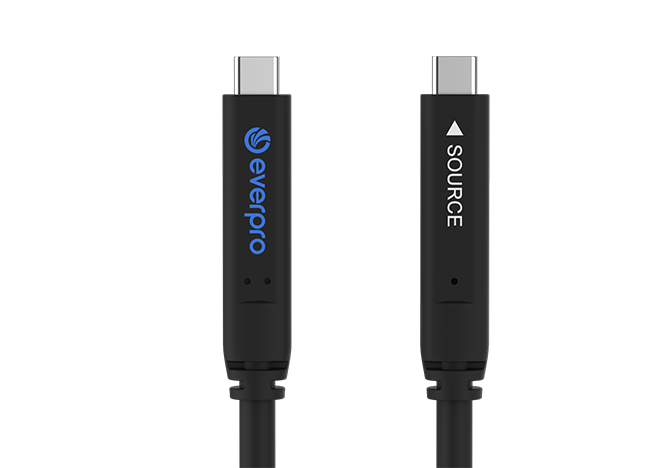

| Interface | Type-C Male |
| Rate | USB 3.2 Gen2 10Gbps, Support USB 2.0/1.1 4Lane DP 1.4 32.4Gbps, 4K @ 60Hz Support DisplayPort 1.4 Alternate Mode |
| Power Supply | Source Connector Power Supply : USB bus Display Connector Supply: PD3.0, 60W(20V/3A) |
| Power Consumption | 1.1W |
| Mechanical/Condition | Connector Dimension(Length/Width/Height): Source Connector: 55mm/12.35mm/9mm ; Display Connector: 55mm/12.35mm/9mm Cable Diameter: 6.5mm Minimum Bend Radius of Cable: 30mm Operating Temperature: -10~60°C Storage Temperature: -20~70°C |
