EPIUH72D
Type C USB 3.2 Gen2x2 AOC

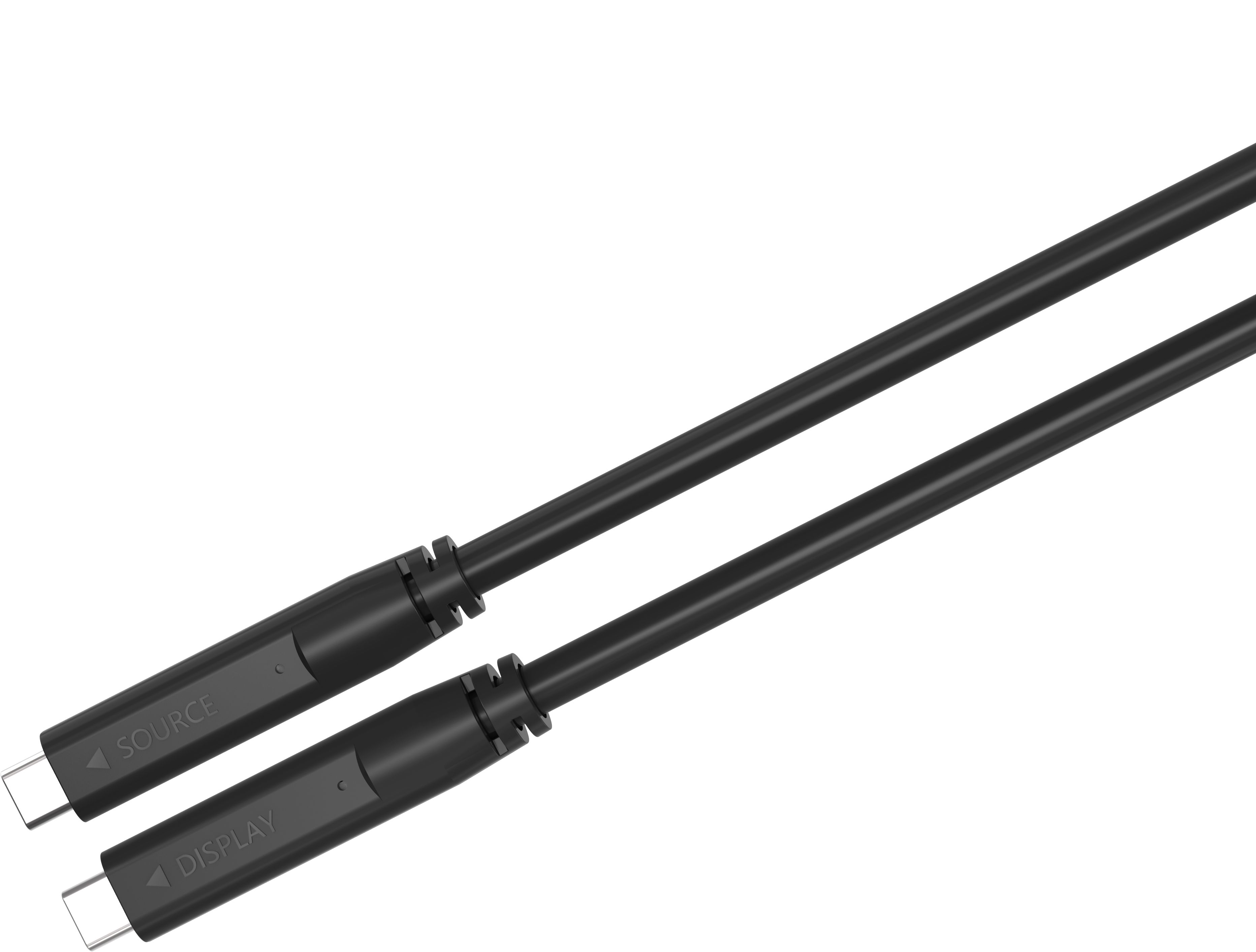

Everprox has developed a new-generation active optical extension cable, the EPIUH72D, featuring USB Type-C male to Type-C male connectors. Both ends of the cable are equipped with injection-molded connectors. Using optical fiber as the signal transmission medium, combined with copper wires for device power delivery, the hybrid cable can achieve a transmission distance of up to 10 m without any relay equipment, making it ideal for applications where no local power supply is available. The high-flexibility design of the EPIUH71E also makes it well suited for machine vision applications. This product complies with the USB Type-C USB 3.2 Gen 2×2 standard and additionally supports USB 2.0 at cable lengths of 5 m and below.
Email：sales-usa@everprox.com
Phone：+1 408-320-2181
Product Advantages
- Maximum transmission distance: 10 m
- Maximum transfer speed: 20 Gbps (10 Gbps per lane)
- Type C USB3.2 Gen2x2
- Plastic injection-molded housing
- Provides up to 900 mA to the connected device
- Plug and play, no additional drivers required
- Supports USB 2.0 (5 m and below)
- Supports hot plug
Product Specs
SPECIFICATION
| Host end | USB3.2 GEN2 USB-C Plug |
| Device end | USB3.2 GEN2 USB-C Plug |
| Cable outer diameter | 4.6mm |
| Cable length | max10m |
| Available cable lengths (optional lengths) | 3m/5m/7m/10m |
| Minimum bend radius (dynamic/static) | 50mm/20mm |
| Tensile strength (long-term /short-term) | 150N/300N |
| Crush resistance (long-term /short-term) / 100 mm | 500N/1000N |
| Drag-chain flex cycles | >10million |
| Operating / Storage Temp | -10~+50° C/-40~+85° C |
| Operating / Storage Humidity | 20%~80% RH/20%~80% RH |
Electrical Specifications
| Host Side (Input)-Input Voltage | 4.75~5.25V |
| Host Side (Input)-Current (Max) | 150mA |
| Host Side (Input) -Cable Power Consumption (Max) | 0.75W |
| Device Side (Output)-Output Voltage | >4V |
| Device Side (Output)-Current(max) | 900mA |
